Wire Mesh (Basket) Cable Tray (CTM-WM) is a wire mesh cable tray from Cable Tray Master. Key specs: 50–600 width range (mm), 4–6 wire diameter (mm), On-site cut and bent to fit.
Wire Mesh Tray · Factory-Direct
The basket tray for data centres and fast fit-outs
A welded steel wire basket tray that keeps cabling ventilated and visible and installs in minutes, cut and bent on site with a hand cutter. Widths 50 to 600 mm, made in our own plant.
- Open weave keeps data cabling ventilated
- Cut and bent on site, no special fittings
- Made in our own factory, EZ / HDG / stainless
We reply within one business day with spec, price and lead time.
Why Cable Tray Master
A manufacturer you can buy direct from, and audit
Cable Tray Master is a cable tray manufacturer and exporter under one owner. We make the tray on our own line in China and ship it with our own export team, so the price is factory-direct, the specification is made to order, and buyers are welcome to visit and audit the plant.
Ventilated and visible
The open welded weave keeps every cable ventilated and in view, which is why data centres and IT rooms specify basket tray for dense data and light-power cabling.
Fastest tray to install
Cut to length and bent around corners on site with a hand cutter, joined with wire couplers, so runs branch and re-route without waiting for matched fittings.
Finish for the room
Economical electro-galvanized for clean server rooms, hot-dip galvanized for damp sections, and stainless for food, pharma and coastal sites.
What the CTM-WM is, and who it is for

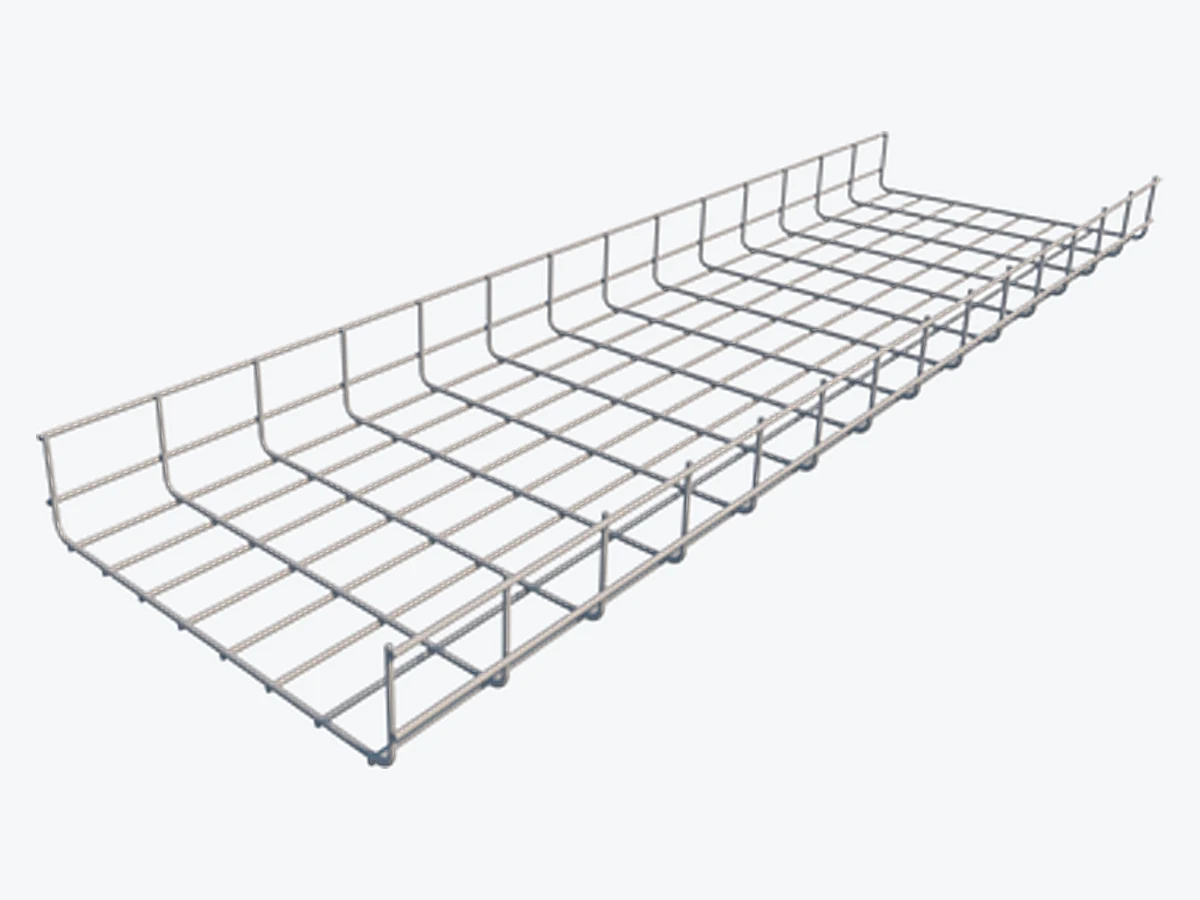

A wire mesh, or basket, tray is a welded steel wire grid formed into a shallow U. It is the tray of choice for data centres, server rooms, telecom and IT cabling, because its open weave keeps every cable visible and fully ventilated, which matters where hundreds of data and light-power cables run side by side and any hot spot is a problem.
Its biggest advantage is speed on site. A basket tray is cut to length and bent around corners with a simple hand cutter, so an installer can branch, drop and re-route a run without waiting for special bends and tees. That makes it the natural fit for fit-outs and fast-changing IT rooms, where the cabling grows and changes over the life of the building. A smooth, safe top edge protects the cable jackets as they are laid in and pulled out.
We make the basket tray in our own factory, in widths from 50 to 600 mm and a range of finishes, from economical electro-galvanized for clean indoor rooms to hot-dip galvanized and stainless for tougher environments. It ships with the wire couplers, supports and fixings needed to build and hang the run.
Specifications
Technical specifications
Confirmed per order. We send the full spec sheet, including sizes, thickness and finish, before you buy.
| Type | Wire mesh / basket cable tray |
|---|---|
| Structure | Welded steel wire grid |
| Wire diameter | 4.0 – 6.0 mm (confirmed per order) |
| Mesh pitch | 50 × 100 mm (typical) |
| Width | 50 – 600 mm |
| Height | 30 – 100 mm |
| Standard Length | 2 m / 3 m (confirmed per order) |
| Material | Low-carbon steel wire |
| Surface Finish | Electro-galvanized (EZ) / HDG / SS304 / SS316 |
| Edge | Smooth safe top edge |
| Certification | Available on request |
| Origin | Made in China (our own factory) |
| MOQ | Confirm on inquiry |
Wire diameter, mesh pitch, width, finish and any certification are confirmed per order before production. Figures shown are typical for this product type; we do not print figures we cannot back up.
Built to do the job on site
Open, ventilated weave
The welded wire grid keeps every cable visible and fully ventilated, which suits dense data and light-power cabling.
Cut and bent on site
Trimmed to length and formed around corners with a hand cutter, so runs branch and re-route without special fittings.
Smooth safe top edge
A rolled, safe edge protects cable jackets and installers as cables are laid in and pulled out.
Widths 50 – 600 mm
From narrow under-desk runs to wide data-hall trays, with heights from 30 to 100 mm.
Finish for the room
Electro-galvanized for clean indoor rooms, hot-dip galvanized and stainless for tougher or wet environments.
Made in our own plant
Wire diameter, mesh pitch, width and finish produced to your spec, packed for export.
How it works
Why basket tray in data centres
Data and light-power cabling comes in high density and changes often. A basket tray answers both: its open weave lets air move freely so nothing overheats, and its wire structure is trimmed and bent on site so a technician can add a drop or reroute a bundle in minutes, without ordering a matched bend. Cables stay visible for inspection, and the smooth top edge means the jackets are not damaged as they are pulled in and out over the life of the room.
Finish and wire diameter
Electro-galvanized (EZ) is the economical, clean finish for indoor server and telecom rooms. Hot-dip galvanized suits damp or outdoor sections, and stainless steel (SS304 or SS316) is used in food, pharma and coastal environments. Wire diameter, usually 4 to 6 mm, sets how much the tray can carry between supports; we confirm the diameter, mesh pitch and finish for your load and environment.
Where it fits on the job
Ventilated data and telecom cabling
The open welded weave keeps dense data and light-power cabling visible and fully ventilated, which is why data centres and IT rooms specify basket tray.

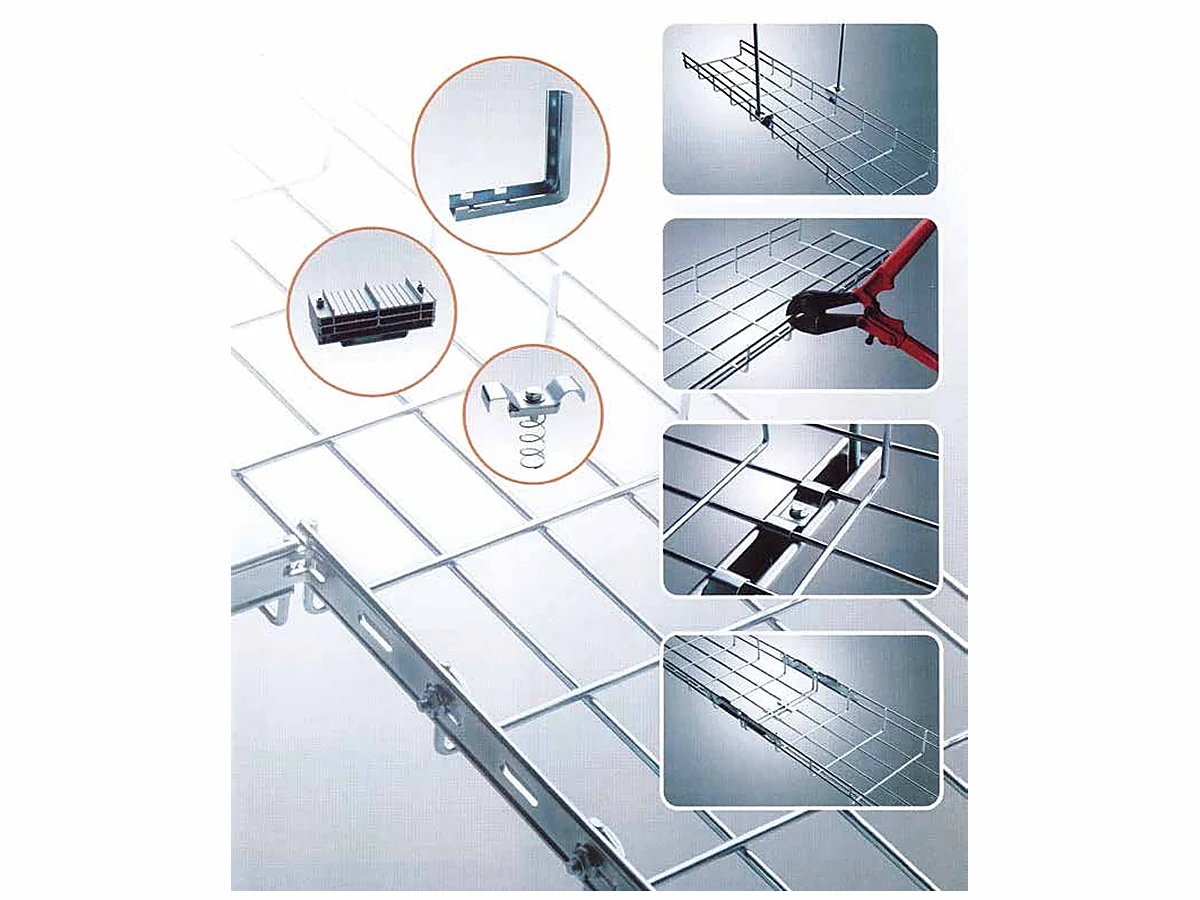

Couplers, brackets and fast fixings
Wire couplers, splice bars, wall and ceiling brackets and quick fixings join and hang the run, so a technician builds and re-routes it without special bends.
Cut and formed on site
A straight basket length is trimmed to size and bent around corners with a hand cutter, so runs branch and change on site in minutes.
Sourcing & Trust
Where this tray comes from, in plain terms
We would rather tell you exactly what we are than dress it up. Here is the honest picture of who makes the tray and what we can document.
Our own factory in China
Made on our own line by a manufacturer and exporter under one owner. Buyers are welcome to visit and audit the plant before ordering.
Ask us to arrange a plant tour.
Export-experienced packing
Nested and crated on wooden pallets with international shipping marks, the way we already ship overseas orders.
Real export packing photos shown on this site.
Documentation on request
Test certificates and compliance documents are confirmed per market and per order. Tell us your destination and standard and we share what applies.
Where we say "typical" or "confirmed per order", it means we set it with you before production. We do not list certifications or load figures we cannot back up.
Downloads
Catalogue, datasheet and guides
Everything your buying team needs to spec and quote the tray. Ask us for anything not yet posted and we will send it the same day.
Wire Mesh Datasheet
Widths, wire diameter, mesh pitch and finishes.
Request a copyProduct Catalogue (PDF)
The full Cable Tray Master range, sizes and finishes.
Request a copyOEM / Custom
Made to your project: width, height, thickness and finish to spec, with OEM marking and packaging. Buyers are welcome to audit the plant.
01
Data centre and IT fit-out
Fast to install, easy to branch, fully ventilated basket tray for dense data and light-power cabling.
02
Telecom and network contractors
Electro-galvanized basket tray for clean indoor server and comms rooms, cut and formed on site.
03
Distributors and wholesalers
A core indoor line, factory-direct, in the common widths and finishes IT and telecom buyers ask for.
Frequently Asked Questions
What is a wire mesh (basket) tray best for?
Do I need special bends and tees?
What finishes are available?
What widths and wire diameters do you make?
Are certificates available?
Can we visit the factory?
Get a quote for CTM-WM
Tell us the width, finish, quantity and destination. We reply within one business day with the section, price and lead time.
